- Chrome 12 string machine heads - dual 6 in line with white caps
- For solid style headstocks where they are mounted along the sides of the head stock
- Two string holes on each shaft
- 25mm between shafts
- All parts and fixing screws and ferrules included

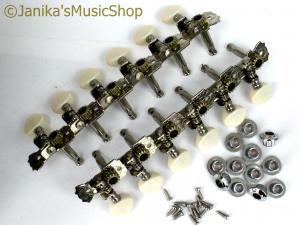

A set of 12 string guitar machine heads suitable for acoustic or electric guitars with solid headstock.
These feature chrome mounting plate and chrome shafts, chrome worm drive,
brass gear with black screw and ivory plastic buttons. Supplied with 14 chrome plated fixing screws.
This type of machine head is designed for side fitting to a solid guitar headstock. A set of 6 left and 6 right is supplied.
These are reversible and individual drives/shafts can be removed for cleaning and repair.
12 plastic ferrules also included
Dimensions
The chrome fixing plates are 165mm long. The first fixing hole is 7mm from the end nearest to the guitar nut.
Subsequent holes are 25mm apart - total 7 holes.
The first shaft is 13mm from the end nearest the guitar nut. Subsequent shafts are 25mm apart - total of 6 shafts.
The shafts are 27mm long from the mounting plate.
The shafts are 6mm diameter.
