- Key feature: Precision-manufactured component delivering reliable mechanical/electrical performance for instrument builds and repairs.
- Compatibility & fit: Designed to meet standard dimensions; ideal for replacement or DIY upgrades — check SKU specs for measurements.
- Material & finish: Made from quality materials to resist corrosion and maintain appearance and function over time.
- Installation: Simple to install with common tools; excellent for luthiers, techs and hobbyists working on guitars and instruments.
- Value: Professional-grade part offering an affordable way to improve tone, playability, or restore factory performance.

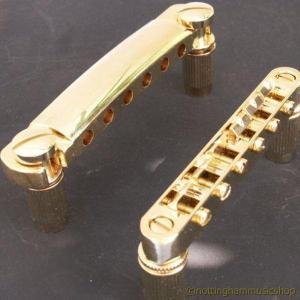

GOLD TUNE-O-MATIC TYPE BRIDGE + TAIL FOR LES PAUL ELECTRIC GUITAR — premium-quality part from Janika.co.uk. A good quality gold plated tune-o-matic style bridge and anchor tailpiece as used on Les Paul style electric guitars.
The tailpiece is attached to the guitar by means of 2 thick metal pegs that are pushed into holes in the guitar body. These pegs have screw in inserts that can be used to adjust the height of the tail.

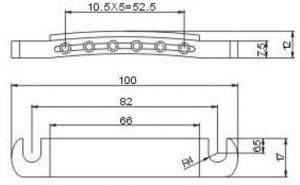

The tail is 100mm x 17mmr
The two mounting posts require 11mm diameter holes, 82mm between centres.
The bridge is attached to the guitar by means of 2 thick metal pegs that are pushed into holes in the guitar body. These pegs have screw in inserts that can be used to adjust the height of the bridge.
The bridge is 84mm x 11mmr
The two bridge mounting posts require 11mm diameter holes, 73mm between centres.
String spacing is 10.5mm.
The post inserts for both bridge and tail posts are size M8 thread.
All parts are gold plated.
Designed for reliable daily use, it offers dependable performance and peace of mind for studio, stage and home setups. Compatible with standard fittings where applicable; perfect as a replacement, spare or upgrade for musicians and builders.
