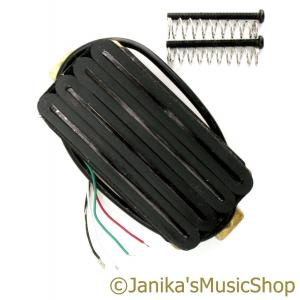

QUAD COIL HOT RAIL DUAL HUMBUCKER BLACK
This is a 4 coil quad hot rail style humbucker pickup with 4 wires.
The pickup has four pole pieces each with its own coil, so effectively this is 2 humbucker pickups side by side.
The pickup is fully shielded for low noise and wired for hum cancelling.
This pickup has high output power.
Total coil resistance is 16kOhm and impedance is 8.2Henry.
The cavity in the guitar body would need to be cut to at least 86x39mm.
The two humbucker fixing screws are 78mm apart.
The coils are are brought out to a 4 core screened cable,
4 cores and a cable screen are available for wiring.
For standard configuration the black wire (attached to the screen) is
the common or ground and the green wire is the live which connects to the volume pot.
The red and white wires are soldered together and connect the two humbuckers in series.
If required you can separate the white and red wires and use the two humbuckers in series, parallel or reverse configuration
for more complicated coil tap wiring arrangements.
The pickup dimensions are shown below.
