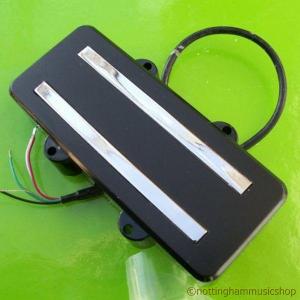

BASS DUAL HOT RAIL HUMBUCKER NECK PICKUP

This is a 4 string bass guitar dual hot rail style humbucker pickup with 4 wires for neck position.


The rectangular measurement excluding the lips for the screws is

96mm x 39mm x 20mm deep.

The fixing holes along each side are 37mm apart and across the pickup are 44mm apart.
The maximum distance across the pickup including the fixing lugs is 50mm.

4 chrome fixing screws will be supplied.

The hot rails are 74mm long.


4 cores and a cable screen are available for wiring.

For standard configuration the black wire (attached to the screen) is
the common or ground and the green wire is the live which connects to the volume pot.

The red and white wires are soldered together and connect the two coils to achieve the humbucking action.

If required you can separate the white and red wires and use the two coils in any configuration
for more complicated wiring arrangements.

Pickup core resistance is 6.3kOhms per coil, making the total series resistance 12.6kOhms.
