NICKEL TUNE-O-MATIC BRIDGE + TAIL FOR LES PAUL ELECTRIC GUITAR

NICKEL TUNE-O-MATIC BRIDGE + TAIL FOR LES PAUL ELECTRIC GUITAR

[EGLPTOMTAILNIC] £17.45
Quantity:

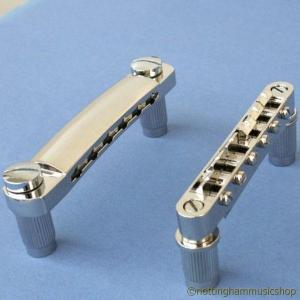

A good quality nickel plated tune-o-matic style bridge and anchor tailpiece as used on Les Paul style electric guitars.

The tailpiece is attached to the guitar by means of 2 thick metal pegs that are pushed into holes in the guitar body. These pegs have screw in inserts that can be used to adjust the height of the tail.

The tail is 100mm x 17mm
The two mounting posts require 11mm diameter holes, 82mm between centres.

The bridge is attached to the guitar by means of 2 thick metal pegs that are pushed into holes in the guitar body. These pegs have screw in inserts that can be used to adjust the height of the bridge.

The bridge is 84mm x 11mm
The two bridge mounting posts require 11mm diameter holes, 73mm between centres.

String spacing is 10.5mm.
The post inserts for both bridge and tail posts are size M8 thread.

All parts are nickel plated.

Note that nickel is slightly more yellow in appearance than chrome.
