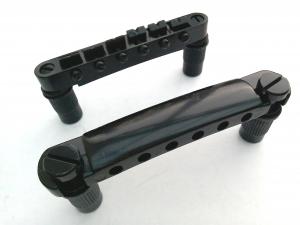

BLACK TUNE-O-MATIC STYLE BRIDGE + TAIL FOR LES PAUL ELECTRIC GUITAR
A good quality black painted tune-o-matic style bridge and tail piece assembly as used on Les Paul style electric guitars.
Both the bridge and the tail piece are attached to the guitar by means of 2 thick metal studs that are fitted into holes in the guitar body.
The studs have screw in inserts that can be used to adjust the height of the bridge and tail piece.
The bridge is 84mm x 11mm The two bridge mounting posts require 11mm diameter holes, 73mm between centres. String spacing is 10.5mm.
The tail piece is 100mm x 17mm. the posts are 82mm between centres.
