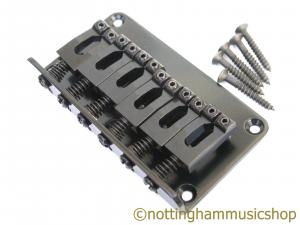

ELECTRIC GUITAR HARD TAIL BRIDGE BLACK 75MM

• Black guitar bridge with 6 fully adjustable saddles
• suitable for through body or hardtail stringing - bridge has string holes at the rear for hardtail and undeneath for through body.
• bottom plate approximately 75mm x 42mm
• 5 screw fixing holes. Outer holes are 67mm and 31 mm apart (centres)
• Ideal for new build or to upgrade an existing guitar.

A good quality electric guitar hard tail or through body stringing bridge.

This bridge can be used in either hard tail or through body configurations.

For hard tail configuration the 6 strings are fitted through holes at the rear of the bridge.

For through body configuration the strings are passed through the back of the guitar body for which the bridge has a set of 6 holes beneath the saddles.

The bridge allows adjustable height and length on each string.

The bridge is fixed to the guitar by five screws which are supplied.

The string spacing at the bridge is 10.5mm.

Bridge size - 75mm wide by 42mm deep (approx)
